Cisco 1921 Review-Why Take It into Top List While Selecting Cisco Routers

We knew that the Cisco 1921 is the better replacement for the previous 1841 Cisco router. Indeed, Cisco 1921 got a wide recognition among the Cisco 1900 router users. For people who get a fresh impression of Cisco 1900/Cisco 1921, they may be not sure about what they need to pay more attention, such as the benefits, the features, the specs, etc. So in this article, we will list the main points of Cisco 1921 that you need to care about while purchasing it.

So, firstly, let’s look at the main configuration of Cisco 1921

  •   1 RU, 19 inch rackmountable, single power supply, 512 MB DRAM, 256 MB internal flash
  •   15MBPS quoted performance “with services enabled”, likely much faster straight throughput
  •   2x 10/100/1000 ethernet ports (RJ45)
  •   2 EHWIC slots

Cisco 1921 router has integrated IPSec and SSL VPN support with upgraded software, but like the 1841, the 1921 cannot be used as a Call Manager or voice gateway (but can still pass VoIP packets through).

More Features and Benefits of Cisco 1921 Routers

Key Features and Benefits of the Cisco 1921

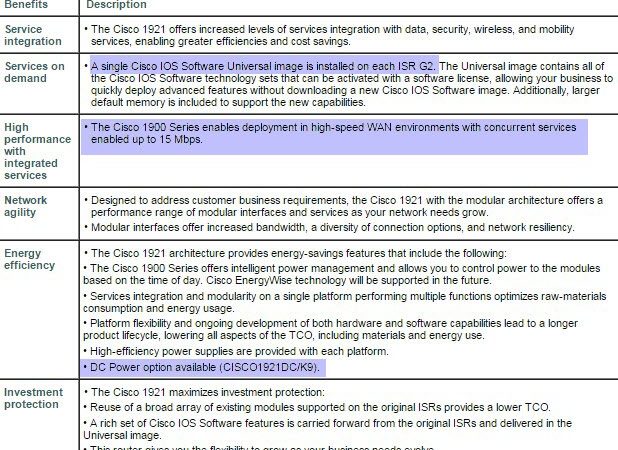

Key Features and Benefits of the Cisco 1921 ISR



Architectural Features and Benefits

The Cisco 1921 is PERFECT to meet the application demands of today’s branch offices with design flexibility for future applications.

  1. Modular platform: With multiple module slots to provide connectivity and services for varied branch-office network requirements. The ISRs offer an industry-leading breadth of LAN and WAN connectivity options through modules to accommodate field upgrades to future technologies without requiring replacement of the platform.
  2. Processors: The Cisco 1921 is powered by high-performance multicore processors that support growing demands of branch-office networks by supporting high-throughput WAN requirements.
  3. Embedded IP Security/Secure Sockets Layer (IPsec/SSL) VPN hardware acceleration: Embedded hardware encryption acceleration is enhanced to provide higher scalability, which, combined with an optional Cisco IOS Security license, enables WAN link security and VPN services (both IPsec and SSL acceleration). The onboard encryption hardware outperforms the advanced integration modules (AIMs) of previous generations.
  4. Integrated Gigabit Ethernet ports: All onboard LAN and WAN ports are 10/100/1000 Gigabit Ethernet routed ports.
  5. Innovative universal-serial-bus (USB)-based console access: A new, innovative, mini-Type B USB console port supports management connectivity when traditional serial ports are not available. The traditional console and auxiliary ports are also available. You can use either the USB-based console or the RJ-45-based console port to configure the router.
  6. Optional external power supply for distribution of PoE: An optional upgrade to the power supply provides inline power (802.3af-compliant PoE) and Cisco Standard Inline Power to optional integrated switch modules.



New and Simplified Software

The new routers now use license keys and a universal image to determine the available features, in the same manner as a PIX or ASA.  This new licensing scheme also has the benefit of producing a clear division between the version of IOS installed and the featureset installed, so you can update the IOS version without touching the featureset part, or upgrade the feature set on a router without touching the IOS file.

In addition, the licensing structure has been further streamlined, now leaving us with just 3 featuresets, none of which overlap.  Here are the contents of each available feature package:

  • IP Base: The default featureset; has support for common routing protocols (RIP, OSPF, EIGRP, BGP), common WAN technologies (MLPPP, MLFR), and common LAN technologies (802.1q trunking).  No VPN, firewall, or voice features are present.
  • Data: The Data license adds support for MPLS, ATM, IS-IS, and non-IP L3 protocols.
  • Security: The Security featureset adds IPSec VPN capabilities, SSL VPN capabilities, and IOS firewall features.

You can apply any combination of these featuresets to the router; you are not restricted to a single featureset per device.

The Cisco 1921 also has a much-improved system architecture, with the EHWIC slots now having a high-throughput point to point connection, vs. the old bus-based architecture of the previous routers.

So the 1921 router is a fantastic device, but with similar limitations to its predecessors – it has only a single power supply and no featureset for voice.



If you wanna order a Cisco 1921 router, the following table show you the basic configuration when you select one.

Product Number Product Description
Cisco1921/K9 Cisco 1921 with 2 onboard GE, 2 EHWIC slots, 256MB USB Flash (internal) 512MB DRAM, IP Base Lic
Cisco1921-SEC/K9 Cisco 1921 with 2 onboard GE, 2 EHWIC slots, 256MB USB Flash (internal) 512MB DRAM, SEC Feature Lic
Cisco1921DC/K9 Cisco 1921 Modular Router DC Power,2GE,2EHWICslots,512MB, IP Base
C1921-AX/K9 Cisco 1921 Router, 256MB CF, 512MB DRAM, IP Base, SEC, AX
C1921-4G-V-SEC/K9 C1921 4G LTE 700MHz (B13) For Verizon Networks with security
Cisco1921-T1SEC/K9

Cisco 1921 SEC T1 bundle with HWIC-1DSU-T1, 256F/512D, IOS SEC Lic
C1921-VA/K9 Cisco 1921 ISR with EHWIC-VA-DSL-A bundle
C1921VAM/K9 Cisco 1921 ISR with Multimode EHWIC for VDSL/ADSL2+ Annex M
C1921-4SHDSL-EA/K9

Cisco 1921 4pair Double Wide EHWIC-4SHDSL-EA bundle, IP Base
PWR-1900-POE POE Power Adapter for Cisco1921



More information of CISCO 1921 including software, Supported Modules, Specifications, Network Management Solutions, Key Branch-Office Services, Mobility Services, etc. you can see here: http://www.cisco.com/c/en/us/products/collateral/routers/1900-series-integrated-services-routers-isr/data_sheet_c78-598389.html

There are questions were asked by some people, some of typical like this as follows:

“What I am looking for is a router model CISCO1921SEC/K9. This router lists as CISCO1921/K9 and lists VPN as a feature. Can someone please verify if this is the Security model or the regular model?”

“What IOS version is on 1921?” “CISCO1941/K9 1941 256M Router. 1 or 2 port serial wan interface card?” “Does Cisco 1921-SEC/K9 support VPN IP/sec?”

“What type of license Cisco 1921 series/ Cisco 1921-SEC/K9 comes with? With the current license, can I do NAT and route traffic to different VLANS?”

…Yeah, these questions you can get answers after you read the main reviews of Cisco 1921 routers.
