ERP Hardware Platform Solution

Are you planning to build your ERP hardware platform? Are you searching for a powerful and cost-effective solution? If yes, here we will share some our cases. Hope it’s helpful for you.

Requirement of an ERP Hardware Platform

  • Highly powerful in processing capabilities
  • Hugh storage space
  • High speed network connectivity
  • High availability and disaster recovery

Requirement of an ERP hardware platform

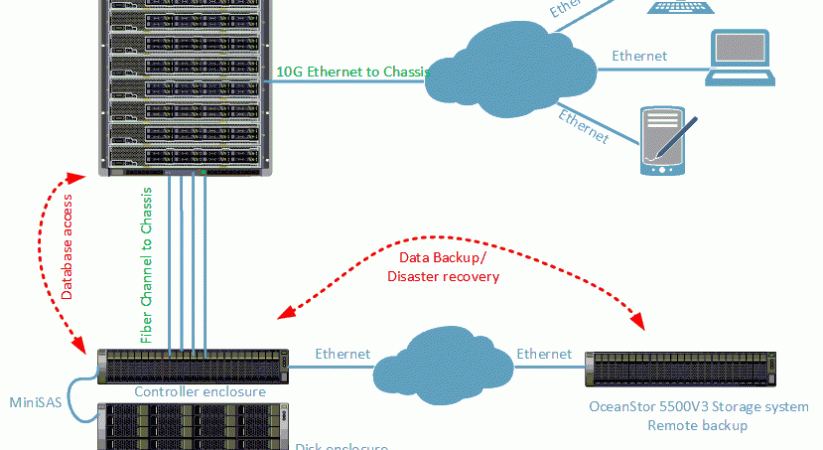

Components of the Sample ERP Platform

Based on the requirements listed above, we customized an ERP platform solution taking advantage of Huawei blade server and Ocean Stor enterprise storage systems. We have deployed this solution in a number of customers and have received very positive feedback.

The solution has two basic components:

  1. Huawei E9000 blade server is the computation powerhouse.
  2. Ocean Stor 5500 is the centralized storage systems used for data repository and backup functionality.

For the detailed equipment list of the sample solution, you can check the Figure below.


E9000 Blade Server-Highlights

  • E9000 Converged Infrastructure Blade Server Chassis provides 16 slots in a 12U chassis that includes redundant Power Supply Units (PSUs), heat-dissipation modules, management modules, and switch modules. This converged infrastructure platform features an optimized layout to make best use of the available space.
  • The Huawei E9000 chassis can be installed in a standard 19-inch rack at a depth of at least 1m. The chassis is available with AC or DC power setups to suit data center requirements.
  • Extensive scalability allows E9000 servers to support a variety of services with 48 DIMMs and 15 x 2.5-inch hard disks in a full-width slot along with 2- and 4-socket compute nodes and support for I/O acceleration using GPUs, PCIe SSDs, and GPUs for General-Purpose computing (GPGPUs)
  • Switch module choices enable the E9000 to handle a variety of services, with modules including GE, 10 GE, 40 GE, FC, FCoE, and InfiniBand FDR with support for evolution to 100 GE and InfiniBand EDR
  • Dynamic power-management functions and Platinum AC PSUs with higher than 95% power conversion efficiency minimize power consumption and heat dissipation
  • A passive midplane helps prevent single-point failures, while support for fully redundant function modules enables seamless switchovers

View of E9000 Server

View of E9000 Server

Left: Front view of E9000 server; Right: Back view of the E9000



Video on Huawei E9000 blade server

Ocean Stor 5500 V3 Storage System-Highlights

view of 5500 V3

  • Offer a cloud architecture-oriented operating system, high-performance hardware platform, and a complete suite of smart management software.
  • Achieve high performance at a latency lower than 1 ms when configured with all SSDs.
  • Scalable to eight controllers, 1 TB cache, 7.5 PB storage capacity, with a variety of interfaces, including 16 Gbit/s FC, 56 Gbit/s InfiniBand, PCIe 3.0, 12 Gbit/s SAS, and smart I/O cards.
  • Perfect storage systems for large OLTP/OLAP databases, file sharing, and cloud computing in the government, finance, telecom, energy, and media industries.
  • Enable convergence in five areas: SAN and NAS, heterogeneous devices, entry-level to high-end storage, HDD and SSD, and storage and backup
  • Provide industry-leading specifications: Up to 8 controllers, 1 TB cache, 7.5 PB storage capacity, and various interface types, including 16 Gbit/s FC, 56 Gbit/s InfiniBand, PCIe 3.0, 12 Gbit/s SAS, and Smart I/O card
  • Simplest management platform handles multiple product models with a graphical interface and is available in Windows, iOS, and Android versions
  • Protect customer initial investment and reduce TCO for multiple applications, various product models, and fast business growth.

Video on Huawei OceanStor storage systems

Router-switch.com provides these models at a competitive price, you can get a quote from here.

If you are interested in the ERP Hardware Platform Solution (Huawei E9000 blade server and Ocean Stor 5500), you can get a quote from router-switch.com.

No. Part Number Model Description Qty.
  E9000 Chassis_Site1
1 E9000
1.1 Chassis Basic Configuration
02301029 IT1K21E9000 12U standard integrative module with  Delivery Accessory 1
03054675 IT1DSMMA0000 MM910,Shelf Management Module A 2
03030QEJ IT0E01FAN000 OSCA Fan Box 14
02310PTH IT1MP2KM  2000W platinum AC power supply unit 6
1.2 Switch Module
03056858 IT11XCUA08  CX912,16*10GE Port,8*8G FC Port(4-Uplink Port Activate,Brocade),Multi-Plane Switch Module 2
……
  OceanStor 5500 V3 Primary_Site1
2 OceanStor 5300 V3
2.1 OceanStor 5300 V3 Main Equipment
2.1.1 Dual-Controller Unit 1
  Controller Enclosure
02350HXC 55V3-48G-AC2-8  5500 V3(2U,Dual Ctrl,AC,48GB,SmartIO, 8*8Gb FC,25*2.5″,SPE33C0225) 1
  Expanding Interface Module
03056794 SMARTIO10ETH 4 port SmartIO I/O module(SFP+,10Gb Eth/FCoE(VN2VF)/Scale-out) 2
  Disk Components
02350CDU  SAS1200-10K-2-1 1200GB 10K  RPM 4KN SAS Disk Unit(2.5″) 54
02350CBH EMLC600-2-01 600GB HSSD eMLC SAS Disk Unit(2.5″) 4
  Disk Enclosure
 02359806 DAE22525U2-1-AC Disk Enclosure(2U,AC,2.5″,Expanding Module,25 Disk Slots,without Disk Unit,DAE22525U2) 2
……
