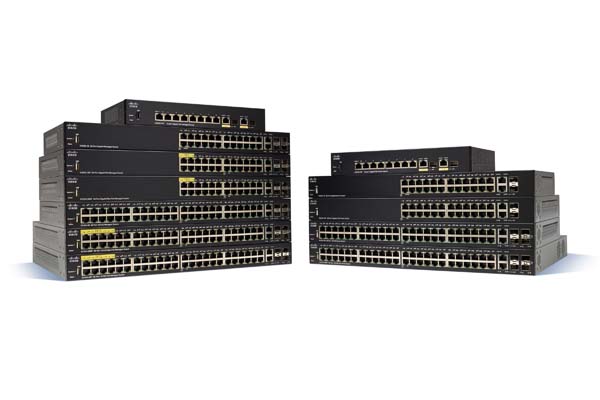

Something New on Cisco 350X Series Stackable Managed Switches

Cisco 350X Series Stackable Managed Switches-Break the 10 Gigabit Ethernet Barrier

With the cool Cisco 350X Series Stackable Managed Switches, you can affordably adopt 10 Gigabit Ethernet connectivity.

  1. These switches offer models with 24- to 48-port Gigabit with 10 Gigabit uplinks and models with 12, 24, or 48 ports of all 10 Gigabit Ethernet connections, featuring both cost-effective copper (10GBase-T) and fiber (SFP+) options.
  2. You can stack up to four units and up to 208 ports that you can configure, manage, and troubleshoot as a single entity.
  3. The SG350XG and SG350X models allow for numerous network design options.
  4. You can use the SG350XG models, with their all 10G ports, as aggregation switches.
  5. You can then can easily and cost-effectively connect the SG350XG 10G links to servers and network storage devices using standard RJ-45 Ethernet cables.
  6. In addition, you can use the SG350X models as access switches, connecting their Gigabit links to end devices and connecting their 10G uplinks to an SG350XG aggregation switch.
  7. Aggregating all the 10G uplinks helps build a high-performance backbone that significantly increases the capacity of your network.
Rich Capabilities Ease Management and Security

Many capabilities are built into the 350X Series switches to simplify the deployment and operation of your network:

  • Easy setup and management: Configuration wizards and true stacking make it easy to set up and manage the network.
  • Power reduction: The latest ASIC technology provides power efficiency that reduces your carbon footprint and your energy bill.
  • Security: Advanced security features include access control lists (ACLs), guest virtual LANs (VLANs), encrypted management data, and IEEE 802.1X security.
  • Threat defense: DHCP snooping, dynamic ARP Inspection, IPv6 first-hop security, and denial-of-service (DoS) prevention help protect your network.

The Cisco 350X Series Stackable Managed Switches are a new line of stackable managed Ethernet switches that provide the rich capabilities you need to support a more demanding network environment at a very affordable price.

  • The SG350X models provide 24 or 48 ports of Gigabit Ethernet connectivity with 10 Gigabit uplinks.
  • The Cisco 350XG models provide 12, 24, or 48 ports of all 10 Gigabit Ethernet, providing a solid foundation for your current business applications as well as those you are planning for the future.

In addition, these switches are easy to deploy and manage without a large IT staff. The SG350X platforms are Cisco’s most cost-effective platforms with 10 Gigabit Ethernet and stacking.

High-Performance 10 Gigabit Ethernet

Cisco 350X Series switches break the barrier of 10 Gigabit Ethernet adoption by providing affordable and flexible configurations customized for the demanding network requirements of small and medium businesses.

With 10G copper ports on SG350XG switches, you can easily and cost-effectively enable 10G connections to servers and network storage devices with standard RJ45 Ethernet cable. You can also connect your SG350X access switches to the SG350XG aggregation with 10G SFP+ fiber connections, building a high-performance backbone to speed up the overall operation of your network.

True Stacking

Some switches claim to support stacking but in practice support only “clustering,” meaning that each switch must still be managed and configured individually. Cisco 350X Series switches provide true stacking capability, allowing you to configure, manage, and troubleshoot all switches in a stack as a single unit, with a single IP address, for up to 4 units and a maximum of 208 Ethernet ports.

A true stack delivers a unified data and control plane, in addition to management plane, providing flexibility, scalability, and ease of use because the stack of units operate as a single entity constituting all the ports of the stack members. This capability can radically reduce complexity in a growing network environment while improving the resiliency and availability of network applications. True stacking also provides other cost savings and administrative benefits through features such as cross-stack QoS, VLANs, LAGs, and port mirroring, which clustered switches can’t support.

Compare 350X Series Models

Get the advanced security management capabilities and network features you need to support business-class data, voice, security, and wireless services.

Choose the best model for your needs.
Product ID SG350XG-2F10 SG350XG-24F SG350XG-24T SF350XG-48T
General
Device type Switch – 10 ports – L3 – managed Switch – 24 ports – L3 – managed Switch – 24 ports – L3 – managed Switch – 48 ports – L3 – managed
Enclosure type Desktop, rack-mountable – 1U Desktop, rack-mountable – 1U Desktop, rack-mountable – 1U Desktop, rack-mountable – 1U
Ports 10 XG copper + 2 combination XG copper/SFP+ plus 1 GE OOB management 22 XG SFP+ slots + 2 combination XG copper/SFP+ plus 1 GE OOB management 22 XG copper + 2 combo XG copper/SFP+ plus 1 GE OOB management 46 XG copper + 2 combination XG copper/SFP+ plus 1 GE OOB management
Power over Ethernet (PoE) N/A N/A N/A N/A
Performance Switching capacity: 240.0 Gbps

Forwarding performance (64-byte packet size): 178.56 Mpps

Switching capacity: 480.0 Gbps

Forwarding performance (64-byte packet size): 357.12 Mpps

Switching capacity: 480.0 Gbps

Forwarding performance (64-byte packet size): 357.12 Mpps

Switching capacity: 960.0 Gbps

Forwarding performance (64-byte packet size): 714.24 Mpps

MAC address table size 64,000 entries 64,000 entries 64,000 entries 64,000 entries
Capacity 4000 active VLANs 4000 active VLANs 4000 active VLANs 4000 active VLANs
Routing protocol Static IPv4 routing Static IPv4 routing Static IPv4 routing Static IPv4 routing
Remote management protocol SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, CLI SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, CLI
Jumbo frame support 10 KB 10 KB 10 KB 10 KB
Authentication method Secure Shell (SSH), RADIUS, TACACS+ Secure Shell (SSH), RADIUS, TACACS+ Secure Shell (SSH), RADIUS, TACACS+ Secure Shell (SSH), RADIUS, TACACS+
Compliance standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP) IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP) IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP) IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP)
RAM 512 MB 512 MB 512 MB 512 MB
Flash memory 32 MB flash 32 MB flash 32 MB flash 32 MB flash
Status indicators Link activity, port transmission speed, system Link activity, port transmission speed, system Link activity, port transmission speed, system Link activity, port transmission speed, system
Expansion and Connectivity
Interfaces 10 x 10Base-T/100Base-TX/1000Base-T/10GBase-T – RJ-45 ¦ 2 combination 10-Gb SFP+ slots|¦1 x GE OOB port  22 10-Gb SFP+ slots|2 x combination 10Base-T/100Base-TX/1000Base-T/10GBase-T – RJ-45 ¦- management ¦1 x GE OOB port 22 x 10Base-T/100Base-TX/1000Base-T/10GBase-T – RJ-45 ¦ 2 combination 10-Gb SFP+ slots|- management ¦1 x GE OOB port 46 x 10Base-T/100Base-TX/1000Base-T/10GBase-T – RJ-45 ¦ 2 combination 10-Gb SFP+ slots|- management ¦1 x GE OOB port
Power
Power device Power supply – internal Power supply – internal Power supply – internal Power supply – internal
Voltage required AC 120/230 V (50/60 Hz) AC 120/230 V (50/60 Hz) AC 120/230 V (50/60 Hz) AC 120/230 V (50/60 Hz)
Miscellaneous
Width 17.3 in. 17.3 in. 17.3 in. 17.3 in.
Depth 10.1 in. 13.8 in. 13.8 in. 17.7 in.
Height 1.5 in. 1.5 in. 1.5 in. 1.5 in.
Weight N/A N/A N/A N/A
Cables included 1 x serial cable 1 x serial cable 1 x serial cable 1 x serial cable
Rack mounting kit Included Included Included Included
MTBF N/A N/A N/A N/A
Compliance standards UL 60950, FCC Part 15 A, CSA 22.2 UL 60950, FCC Part 15 A, CSA 22.2 UL 60950, FCC Part 15 A, CSA 22.2 UL 60950, FCC Part 15 A, CSA 22.2
Localization Chinese (simplified), English, German, French, Italian, Spanish, Japanese Chinese (simplified), English, German, French, Italian, Spanish, Japanese Chinese (simplified), English, German, French, Italian, Spanish, Japanese Chinese (simplified), English, German, French, Italian, Spanish, Japanese
Environmental Parameters
Minimum operating temperature 32°F 32°F 32°F 32°F
Maximum operating temperature 104°F 104°F 104°F 104°F
Humidity range operating 10 – 90% (non-condensing) 10 – 90% (non-condensing) 10 – 90% (non-condensing) 10 – 90% (non-condensing)
Minimum storage temperature -4°F -4°F -4°F -4°F
Maximum storage temperature 158°F 158°F 158°F 158°F
Humidity range storage 10 – 90% (non-condensing) 10 – 90% (non-condensing) 10 – 90% (non-condensing) 10 – 90% (non-condensing)
 Ordering Information-Cisco 350X Series Models
Model Name
Product Order ID Number
Description
SG350X-24 SG350X-24-K9 ●  24 x 10/100/1000 ports

●  4 x 10 Gigabit Ethernet (2 x 10GBase-T/SFP+ combo + 2 x SFP+)

SG350X-24P SG350X-24P-K9 ●  24 x 10/100/1000 PoE+ ports with 195W power budget

●  4 x 10 Gigabit Ethernet (2 x 10GBase-T/SFP+ combo + 2 x SFP+)

SG350X-24MP SG350X-24MP-K9 ●  24 x 10/100/1000 PoE+ ports with 382W power budget

●  4 x 10 Gigabit Ethernet (2 x 10GBase-T/SFP+ combo + 2 x SFP+)

SG350X-48 SG350X-48-K9 ●  48 x 10/100/1000 ports

●  4 x 10 Gigabit Ethernet (2 x 10GBase-T/SFP+ combo + 2 x SFP+)

SG350X-48P SG350X-48P-K9 ●  48 x 10/100/1000 PoE+ ports with 382W power budget

●  4 x 10 Gigabit Ethernet (2 x 10GBase-T/SFP+ combo + 2 x SFP+)

SG350X-48MP SG350X-48MP-K9 ●  48 x 10/100/1000 PoE+ ports with 740W power budget

●  4 x 10 Gigabit Ethernet (2 x 10GBase-T/SFP+ combo + 2 x SFP+)

SG350XG-2F10 SG350XG-2F10-K9 ●  10x 10 Gigabit Ethernet 10GBase-T copper port

●  2 x 10 Gigabit Ethernet SFP+ (dedicated)

●  1 x Gigabit Ethernet management port

SG350XG-24F SG350XG-24F-K9 ●  24x 10 Gigabit Ethernet SFP+

●  2x 10 Gigabit Ethernet 10Gbase-T copper port (combo with 2 SFP+)

●  1x Gigabit Ethernet management port

SG350XG-24T SG350XG-24T-K9 ●  24x 10 Gigabit Ethernet 10GBase-T copper port

●  2x 10 Gigabit Ethernet SFP+ (combo with 2 copper ports)

●  1x Gigabit Ethernet management port

SG350XG-48T SG350XG-48T-K9 ●  48x 10 Gigabit Ethernet 10GBase-T copper port

●  2x 10 Gigabit Ethernet SFP+ (combo with 2 copper ports)

●  1x Gigabit Ethernet management port

* Each combo port has one 10/100/1000/10000 copper Ethernet port and one SFP+ Gigabit Ethernet slot, with one port active at a time.

More data sheets of Cisco 350X Series Stackable Managed Switches, such as Easy Deployment and Use, PoE+ and 60W PoE, Strong Security, IPv6 Support, etc. you can read the detailed info here: http://www.cisco.com/c/en/us/products/collateral/switches/350x-series-stackable-managed-switches/datasheet-c78-735986.html
