Cisco 3560X, Cisco 3750X to Cisco Catalyst 3850 & 3650 Switches

Cisco 3650 switch, like the new Cisco 3850 series, was designed to converge wired and wireless networking. Last year, Cisco unveiled the Catalyst 3650 switch that features line rate 24 and 48 Gigabit Ethernet ports and an integrated wireless controller. It can be stacked in groups of nine switches for support of up to 25 access points and 1,000 clients at 40Gbps. Stacking bandwidth is 160Gbps.

Catalyst 3850 Series, also the new stackable GE switch, is based on a new Cisco programmable ASIC called the Unified Access Data Plane (UADP) that is designed to converge processing and termination of wired and wireless traffic into a single data plane, enable consistent services to be applied to both, and allow for deployment of software-defined networking services. The Cisco 3850 represents the next generations of Cisco’s Catalyst 3000 series switches and a successor to the Catalyst 3750-X. Cisco 3650 and 3850 Series, both are the new Cisco Catalyst 3K series. What are the main differences between them and each of their main features? Here we will shared some info about Cisco Catalyst 3K Comparisons: Cisco 3560X vs. Cisco 3750X vs. Cisco 3650 vs. Cisco 3850 Series. More detailed features, more specs and more comparisons…

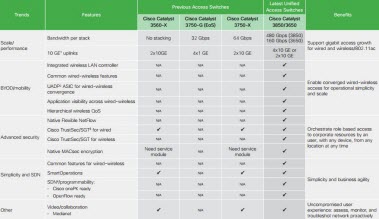

Cisco 3560 X vs. 3650 Switch vs. 3750-X vs. Catalyst 3850 Series

 Benefits of Migrating to Catalyst 3850 and 3650 Switches

Note: Cisco Catalyst 3850 offers higher AP support, modular uplinks and StackPower in addition to Cisco Catalyst 3650 features.

  1. GE-Gigabit Ethernet
  2. UADP ASIC-Unified Access Data Plane ASIC
  3. SGT-Security Group Tag
  4. SDN-Software Defined Networking

Reference from http://www.cisco.com/catalyst-3650-series-switches/feature-comparison-c83-731054.pdf

Model Comparison for the Cisco Catalyst 3650 Series Switches

Cisco 3650 Model Comparison

Cisco Catalyst 3650 Series Switches are the next generation of enterprise-class, stackable access-layer switches that provide full wired and wireless convergence on a single platform. The Cisco Catalyst 3650 enables uniform wired-wireless policy enforcement, application visibility, flexibility, application optimization, and superior resiliency.

All Cisco Catalyst 3650 Series Switches have fixed, built-in uplink ports. The table below provides high-level comparisons of the different available models in the Catalyst 3650 Series Switch family. You may view all models with:

  • 4 x Gigabit
  • 2 x 10 Gigabit
  • 4 x 10 Gigabit

All models can be purchased with LAN Base, IP Base, or IP Services software. Customers need to purchase the IP Base or the IP Services software-enabled models in order to use the Catalyst 3650 Series Switch as a wireless controller.

4 x Gigabit Ethernet with Small Form-Factor Pluggable (SFP) Uplinks

Models

Total 10/100/1000 Ethernet Ports

Default AC Power Supply

Available PoE Power

WS-C3650-24TS 24 250 WAC
WS-C3650-48TS 48 250 WAC
WS-C3650-24PS 24 PoE+ 640 WAC 390 W
WS-C3650-48PS 48 PoE+ 640 WAC 390 W
WS-C3650-48FS 48 PoE+ 1025 WAC 775 W

2 x 10 Gigabit Ethernet with SFP+ (or 4 x Gigabit Ethernet with SFP) Uplinks

Models Total 10/100/1000 Ethernet Ports Default AC Power Supply Available PoE Power
WS-C3650-24TD 24 250 WAC
WS-C3650-48TD 48 250 WAC
WS-C3650-24PD 24 PoE+ 640 WAC 390 W
WS-C3650-48PD 48 PoE+ 640 WAC 390 W
WS-C3650-48FD 48 PoE+ 1025 WAC 775 W

4 x 10 Gigabit Ethernet with SFP+ (or 4 x Gigabit Ethernet with SFP) Uplinks

Models

Total 10/100/1000 Ethernet Ports

Default AC Power Supply

Available PoE Power

WS-C3650-48TQ 48 250 WAC
WS-C3650-48PQ 48 PoE+ 640 WAC 390 W
WS-C3650-48FQ 48 PoE+ 1025 WAC 775 W
