The New Cisco WAP571E Wireless-AC N Premium Dual Radio Outdoor Access Point

Besides the new Cisco WAP571 Wireless-AC N Premium Dual Radio Access Point with PoE, the Cisco WAP571E Wireless-AC N Premium Dual Radio Outdoor Access Point is the other new member of Cisco Small Business 500 Series Wireless Access Points. What are the difference between these new two models? In this article, we will share more details of the new Cisco WAP571E access point and the comparison of WAP571 and WAP571E.

The Cisco WAP571E access point is purpose-built to meet the demands of your outdoor spaces. It offers a rugged housing (IP66 rated), and works even in rain, snow, and extreme high and low temperatures.

The WAP571E access point delivers high-performance Wi-Fi connectivity for outdoor deployments, supporting 802.11ac technology. This access point:

  • Provides 802.11ac outdoor connectivity with speed up to 1.9 Gbps
  • Supports 3×3 multiple-input multiple-output (MIMO) technology with three spatial streams for maximum performance on both 2.4- and 5.0-GHz radios
  • Includes an outdoor-rated IP66 enclosure designed for challenging outdoor environments, and surge protection support
  • Offers dual Gigabit Ethernet LAN with Energy Efficient Ethernet and link aggregation support

WAP571E access points also include Single Point Setup. This controller-less technology simplifies the deployment and management of multiple access points, without requiring additional hardware.

Other features that make management easy include:

  • Simple installation and an intuitive web-based configuration and wizard for setup in minutes
  • Support for Power over Ethernet (PoE) for easy installation without expensive additional wiring
  • Sleek design with multiple internal antennas and a versatile mounting kit for installation on a pole or a wall Workgroup Bridge mode to expand your network by wirelessly connecting to a second Ethernet network

Cisco WAP571E Wireless-AC N Premium Dual Radio Outdoor Access Point

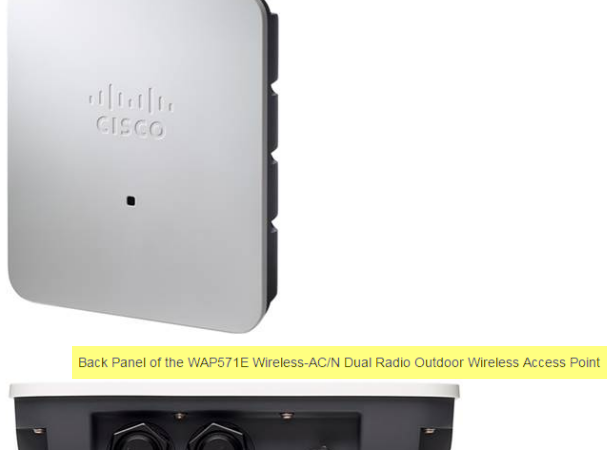

the Cisco WAP571E's front and back panels

Cisco WAP571E Wireless-AC N Premium Dual Radio Outdoor Access Point



Some Specifications of Cisco WAP571E Wireless-AC/N Dual Radio Outdoor Wireless AP

The Table below lists the specifications, package contents, and minimum requirements for the WAP571E access point.

Specifications for the WAP571E Wireless-AC/N Dual Radio Outdoor Wireless AP

Specifications Description
Standards IEEE 802.11ac, 802.11a, 802.11n, 802.11g, 802.11b, 802.3af, 802.3u, 802.1X (security authentication), 802.1Q (VLAN), 802.1D (Spanning Tree), 802.11i (WPA2 security), 802.11e (wireless QoS), IPv4 (RFC 791), IPv6 (RFC 2460)
Ports 2 LAN Gigabit Ethernet autosensing
Cabling type Category 5e or better
Antennas Internal antennas optimized for installation on a wall
LED indicators One LED
Operating system Linux
Physical Interfaces
Ports 2- 10/100/1000 Ethernet, with support for 802.3at at PoE support is only for 1 port and not 2 ports
Buttons Reset button
LEDs One multi-function LED
Physical Specifications
Physical dimensions (W x D x H) 9.05 x 7.87 x 1.96 in. (230 x 200 x 50 mm)
Weight 2.97 lb or 1350g
Network Capabilities
VLAN support Yes
Number of VLANs 1 management VLAN plus 32 VLANs for SSIDs
802.1X supplicant Yes
SSID-to-VLAN mapping Yes
Auto-channel selection Yes
Spanning tree Yes
Load balancing Yes
IPv6 Yes

●  IPv6 host support

●  IPv6 RADIUS, syslog, Network Time Protocol (NTP)

Layer 2 802.1Q-based VLANS, 32 active VLANS plus 1 management VLAN
Security
WPA, WPA2 Yes, including Enterprise authentication
Access control Yes, management access control list (ACL) plus MAC ACL
Secure management HTTPS
SSID broadcast Yes
Rogue access point detection Yes
Mounting and Physical Security
Multiple mounting options Mounting bracket included for easy wall or pole mounting
Quality of Service
QoS Wi-Fi Multimedia and Traffic Specification (WMM TSPEC), client QoS
Performance
Wireless throughput Up to 1.9Gbps data rate (real-world throughput will vary)
Recommended user support Up to 200 connective users, 50 active users per radio
Multiple-Access Point Management
Single Point Setup Yes
Number of access points per cluster 16
Active clients per cluster 960
Configuration
Web user interface Built-in web user interface for easy browser-based configuration (HTTP/HTTPS)
Management
Management protocols Web browser, Simple Network Management Protocol (SNMP) v3, Bonjour
Remote management Yes
Event logging Local, remote syslog, email alerts
Network diagnostics Logging and packet capture
Web firmware upgrade Firmware upgradable through web browser, imported and exported configuration file
Dynamic Host Configuration Protocol (DHCP) DHCP client
IPv6 host Yes
HTTP redirect Yes



Package Contents
●  Cisco WAP571E Wireless-AC/N Dual Radio Outdoor Wireless Access Point

●  Wall and pole mounting kit

●  Quick-start guide

●  Ethernet network cable

Minimum Requirements
●  Switch or router with PoE support

●  Web-based configuration: Java-enabled web browser

Warranty
Access point Limited lifetime

More specs such as the Wireless, Environmental you can read here http://www.cisco.com/c/en/us/products/collateral/wireless/small-business-500-series-wireless-access-points/datasheet-c78-736451.html



Compare Models: WAP571 vs. WAP571E

Product WAP571 WAP571E
Width 9.05 in. 9.05 in.
Depth 9.05 in. 7.87 in.
Height 1.57 in. 1.96 in.
Weight 1.71 lb 2.97 lb
Localization
Type Indoor Outdoor
Processor/Memory/Storage
Hard Drive
RAM Installed (Max) 256 MB 256 MB
Flash Memory Installed (Max) 128 MB 128 MB
Networking
Form Factor
Connectivity Technology Wireless AC Wireless AC
Data Transfer Rate 1300+600 Mbps 1300+600 Mbps
Line Coding Format
Data Link Protocol IEEE 802.11a/b/g/n, IEEE 802.11ac IEEE 802.11a/b/g/n, IEEE 802.11ac
DFS Support Yes Yes
Spread Spectrum Method
Remote Management Protocol SNMPv3, HTTP, HTTPS SNMPv3, HTTP, HTTPS
Network/Transport Protocol DHCP, Bonjour DHCP, Bonjour
Number of radios 2 2
Frequency Band 2.4 GHz and 5.0 GHz 2.4 GHz and 5.0 GHz
MIMO 3×3:3 for 2.4 GHz and 5 GHz 3×3:3 for 2.4 GHz and 5 GHz
Maximum Active WLAN Clients 32 per radio 32 per radio
Number of AP’s supported per cluster
Status Indicators One LED: Power, WLAN, LAN One LED: Power, WLAN, LAN
Features DHCP support, load balancing, VLAN support, syslog support, email alert, IPv6 support, Wireless Distribution System (WDS) support, firmware upgradable, wall mountable, Spanning Tree Protocol (STP) support, Wi-Fi Multimedia (WMM) support, access control list (ACL) support, quality of service (QoS), RADIUS support, Wi-Fi Protected Setup (WPS), multiple SSID support, wireless bridge mode, IPv4 support, rogue access point detection, captive portal, RF Spectrum Analysis, Single Point Setup DHCP support, load balancing, VLAN support, syslog support, email alert, IPv6 support, Wireless Distribution System (WDS) support, firmware upgradable, wall mountable, Spanning Tree Protocol (STP) support, Wi-Fi Multimedia (WMM) support, access control list (ACL) support, quality of service (QoS), RADIUS support, Wi-Fi Protected Setup (WPS), multiple SSID support, wireless bridge mode, IPv4 support, rogue access point detection, Captive Portal, RF Spectrum Analysis, Single Point Setup
    Roaming
Encryption Algorithm
Authentication Method
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.11b, IEEE 802.3af, IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11e, IEEE 802.11n, Wi-Fi Protected setup IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.11b, IEEE 802.3af, IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11e, IEEE 802.11n, Wi-Fi Protected setup
Antenna
Antenna Internal integrated Internal integrated
Antenna Qty
Directivity
Gain Level 1.99 dBi max on 2.4 GHz
1.28 dBi max on 5 GHz
2.98 dBi max on 2.4 GHz
3.55 dBi max on 5 GHz
Expansion/Connectivity
Interfaces 2 x network / power – Ethernet 10Base-T/100Base-TX – RJ-45 2 x network / power – Ethernet 10Base-T/100Base-TX – RJ-45
Miscellaneous
Cables Included
Mounting Kit
Compliant Standards
Power
Power Over Ethernet (PoE) Supported 802.3af/at 802.3af/at
Power Device
Voltage Required PoE only PoE only
Software/Systems Requirements
OS Provided
Mean Time Between Failure (MTBF)
Manufacturer Warranty Limited lifetime warranty Limited lifetime warranty
Manufacturer Warranty
Service & Support
Service & Support Details
Environment Parameters
Min Operating Temperature 32 °F 32 °F
Max Operating Temperature 104 °F 104 °F
Humidity Range Operating 10-85% (noncondensing) 10-85% (noncondensing)
