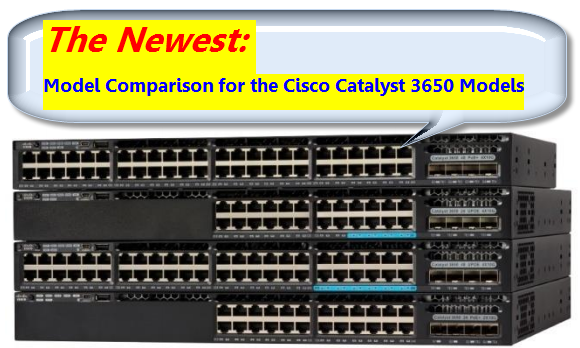

The Newest: Model Comparison for the Cisco Catalyst 3650 Models

Cisco has updated features of Cisco Catalyst 3650 series. More models are added to Catalyst 3650 family: 8 x10 Gigabit and 2 x 40 Gigabit.

The 3650 Series switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), Cisco Universal Power over Ethernet (Cisco UPOE) on the Cisco Catalyst 3650 Series multigigabit switches, and offer modular and field-replaceable redundant fans and power supplies.

Cisco Catalyst 3650 Series Switches

Redundant Power Supplies

Redundant Power Supplies

Available PoE with DC Power Supply

Model Number of DC Power Supplies Total Available PoE Budget
24-port or 48-port PoE Switch (non-multigigabit) 1 390 W
2 780 W

Minimum Power Supply Requirements for Full PoE and PoE+

  24-Port PoE Switch 48-Port PoE Switch
PoE on All Ports (15.4 W per port) One PWR-C2-640 WAC One PWR-C2-1025WAC or Two PWR-C2-640 WAC
PoE+ on All Ports (30 W per port) One PWR-C2-1025WAC or Two PWR-C2-640 WAC Two PWR-C2-1025 WAC

Power Supply Requirements for Cisco UPOE

  24-Port Multigigabit Cisco UPOE Switch 48-Port Multigigabit Cisco UPOE Switch
Cisco UPOE (60W per port) on all (24-port switch) or max. 29 ports (48-port switch) One 1100W and one 715W power supplies or two 1100W power supplies Two 1100W power supplies

The different power supplies are available in these switches and available PoE power.

Switch Models and Corresponding Default Power Supplies

Switch Models and Corresponding Default Power Supplies

The Cisco Catalyst 3650 Series Switches also come in a 12-inch lower depth (WS-C3650-24PDM/WS-C3650-48FQM only) form factor so that you can deploy them in tight wiring closets in remote branches and offices where depth of the switch is a concern.

All Cisco Catalyst 3650 Series Switches have fixed, built-in uplink ports and ship with one power supply. The 5 tables below provides high-level comparisons of the different available models in the Catalyst 3650 Series Switch family. You may view all models with: 4 x Gigabit, 2 x 10 Gigabit, 4 x 10 Gigabit, 8 x10 Gigabit and 2 x 40 Gigabit

Customers can choose from five types of uplink ports at the time of the switch purchase:

  • Four Gigabit Ethernet with Small Form-Factor Pluggable (SFP)
  • Two 10 Gigabit Ethernet with SFP+ and two 10 Gigabit Ethernet with SFP or four Gigabit Ethernet with SFP
  • Four 10 Gigabit Ethernet with SFP+ or four Gigabit Ethernet with SFP
  • Eight 10 Gigabit Ethernet with SFP+ or eight Gigabit Ethernet with SFP
  • Two 40 Gigabit Ethernet with QSFP+

All models can be purchased with LAN Base, IP Base, or IP Services software. Customers need to purchase the IP Base or the IP Services software-enabled models in order to use the Catalyst 3650 Series Switch as a wireless controller.

Model Comparison for the Cisco Catalyst 3650 Series Switches

4 x Gigabit Ethernet with Small Form-Factor Pluggable (SFP) Uplinks

Models Total 10/100/1000 Ethernet Ports Default AC Power Supply Available PoE Power
WS-C3650-24TS

24 250 WAC
WS-C3650-48TS 48 250 WAC
WS-C3650-24PS 24 PoE+ 640 WAC 390 W
WS-C3650-48PS

48 PoE+ 640 WAC 390 W
WS-C3650-48FS 48 PoE+ 1025 WAC 775 W

 2 x 10 Gigabit Ethernet with SFP+ (or 4 x Gigabit Ethernet with SFP) Uplinks

Models Total 10/100/1000 Ethernet Ports Default AC Power Supply Available PoE Power
WS-C3650-24TD 24 250 WAC
WS-C3650-48TD 48 250 WAC
WS-C3650-24PD 24 PoE+ 640 WAC 390 W
WS-C3650-24PDM 24 PoE+ Fixed 640 WAC 390W
WS-C3650-48PD 48 PoE+ 640 WAC 390 W
WS-C3650-48FD 48 PoE+ 1025 WAC 775 W

 4 x 10 Gigabit Ethernet with SFP+ (or 4 x Gigabit Ethernet with SFP) Uplinks

Models Total 10/100/1000 Ethernet Ports Default AC Power Supply Available PoE Power
WS-C3650-48TQ 48 250 WAC
WS-C3650-48PQ 48 PoE+ 640 WAC 390 W
WS-C3650-48FQM 48 PoE+ Fixed 975 WAC 775 W
WS-C3650-48FQ 48 PoE+ 1025 WAC 775 W
WS-C3650-8X24UQ 24 UPOE (with 8 100-Mbps and 1-, 2.5-, 5-, and 10-Gbps ports) 1100 WAC 820W
WS-C3650-12X48UQ 48 UPOE (with 12 100-Mbps and 1-, 2.5-, 5-, and 10-Gbps ports) 1100 WAC 660W

8 x 10 Gigabit Ethernet with SFP+ (or 8 x Gigabit Ethernet with SFP) Uplinks

Models Total 10/100/1000 Ethernet Ports Default AC Power Supply Available PoE Power
WS-C3650-12X48UR 48 UPOE (with 12 100-Mbps and 1-, 2.5-, 5-, and 10-Gbps ports) 1100 WAC 660W

 2 x 40 Gigabit Ethernet with QSFP+ Uplinks

Models Total 10/100/1000 Ethernet Ports Default AC Power Supply Available PoE Power
WS-C3650-12X48UZ 48 UPOE (with 12 100-Mbps and 1-, 2.5-, 5-, and 10-Gbps ports) 1100 WAC 660W
