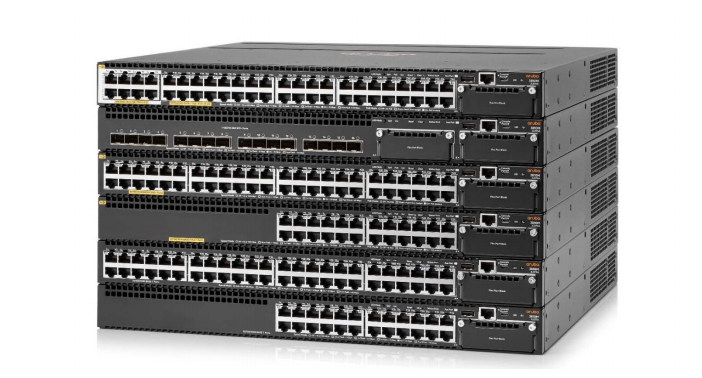

The 3810 is a high-performance wireless aggregation campus switch.

POSITIONING IN THE ARUBA CAMPUS SWITCH PORTFOLIO

(AOS-SWITCH 16.03 REQUIRED FOR 2930F VSF STACKING AND CENTRAL SUPPORT FOR 3810.)

The Aruba 3810 Switch Series includes 9 switches, power supplies and modules. Power supplies are not included and must be ordered separately.

Product number Product name Access Ports Uplink Ports Powered Ports
JL071A Aruba 3810M 24G 1-slot Switch 24 Supports a maximum of 4 SFP+ ports or 1 x 40GbE ports, with optional module
JL072A Aruba 3810M 48G 1-slot Switch 48 Supports a maximum of 4 SFP+ ports or 2 x 40GbE ports, with optional module



JL073A Aruba 3810M 24G PoE+ 1-slot Switch 24 Supports a maximum of 4 SFP+ ports or 1 x 40GbE ports, with optional module 24; total PoE+ based on PSU
JL074A Aruba 3810M 48G PoE+ 1-slot Switch 48 Supports a maximum of 4 SFP+ ports or 2 x 40GbE ports, with optional module 48; total PoE+ based on PSU
JL075A Aruba 3810M 16SFP+ 2-slot Switch 16 SFP+ Supports a maximum of 8 SFP+ ports or 2 x 40GbE ports, with optional module



JL076A Aruba 3810M 40G 8 HPE Smart Rate PoE+ 1-slot Switch 48 Supports a maximum of 4 SFP+ ports or 2 x 40GbE ports, with optional module 48; total PoE+ based on PSU
Go to More Aruba 3810M Models
Power supplies and modules
Product number Product name
JL078A Aruba 3810M 1QSFP+ 40GbE Module
JL079A Aruba 3810M 2QSFP+ 40GbE Module

(JL079A not supported on JL071A, JP073A, JL075A)

JL083A Aruba 3810M 4SFP+ Module
JL084A Aruba 3810M 4-port Stacking Module
JL085A Aruba X371 12VDC 250W 100-240VAC Power Supply
JL086A Aruba X372 54VDC 680W 100-240VAC Power Supply
JL087A Aruba X372 54VDC 1050W 110-240VAC Power Supply
JL088A Aruba 3810 Switch Fan Tray
Learn more: Aruba 3810M Switch Series-QuickSpecs

COMPETITIVE ADVANTAGES

The Aruba 3810 Switch Series outperforms the Cisco Catalyst 3850:

  • Lower latency for a better user experience. 69% lower average L2 5-stack member stack latency and 51% lower average L2 standalone latency1.
  • Resiliency with dual redundant hot-swappable power supplies.
  • Minimize downtime with a faster re-boot time. Aruba 3810 takes less than 2 minutes while the Cisco 3850 takes more than 6 minutes1.
  • Wired wireless integration features like Tunneled node, Aruba AP PoE priority, Captive Portal and User Role.
  • Cloud manageable for simple deployment and operations.
  • Better value with 29% lower TCO1 and Limited Lifetime warranty, no software licensing and no licensing required for stacking.
Cisco 3850 vs. Aruba 3810

Reference from https://assets.mr-file-serve.com/HPE/ams_campaigns/2H17/Aruba/Aruba_3810_Switch_Series_Competitive_Battlecard.pdf
