Cisco catalyst 3750-X vs. 3560-X, Cisco 3750E vs. 3750X series, Cisco 3750-X vs. 3850-Series, What are the differences? These Cisco 3750-X comparison questions often comes up for discussion. Maybe we know a little brief difference, for example, the catalyst 3750 supports Cisco StackWise, can create one large virtual switch out of multiple chassis. And Cisco 3560 has a “cluster” feature, which means that you can control multiple switches from a single one.

In this article, we will mainly compare the Cisco 3750-E series to Catalyst 3750-X. We know that the “X” offers what Cisco is calling StackPower, the ability to share power loads between multiple switches. This is a beneficial feature when it comes to PoE+. StackPower allows up to four members of the same StackWise group to combine their power supplies into one large virtual power supply. It also allows some of the power supplies to be taken offline, increasing efficiency.

The Cisco 3750X Series Switches

Cisco 3750X Series Switches

For building out small to medium offices these two features are quite valuable. Start with one switch and add on with little to no disruption, while only using the power needed.

Note: One exception is the new LAN Base models being introduced with the Cisco Catalyst 3750-X Series, which can stack only with other Catalyst 3750-X LAN Base models. Cisco Catalyst 3750-E and Catalyst 3750-X StackWise Plus and Cisco Catalyst 3750 StackWise switches can be combined in the same stack. When this happens, the Cisco Catalyst 3750-E, or Catalyst 3750-X switches negotiate from StackWise Plus mode down to StackWise mode.

After we got a general impression on Cisco 3750-X series, let’s come to Cisco Catalyst 3750-E Series’ highlights.

Cisco Catalyst 3750-E Series

  1. Cisco TwinGig converter module for migrating uplinks from Gigabit Ethernet to 10 Gigabit Ethernet
  2. PoE configurations with up to 15.4W of PoE on all 48 ports
  3. StackWisePlus for ease of use and resiliency
  4. Modular power supply with externally available backup
  5. IPv6 routing and multicast routing in hardware
  6. Out-of-band Ethernet management port along with RS-232 console port

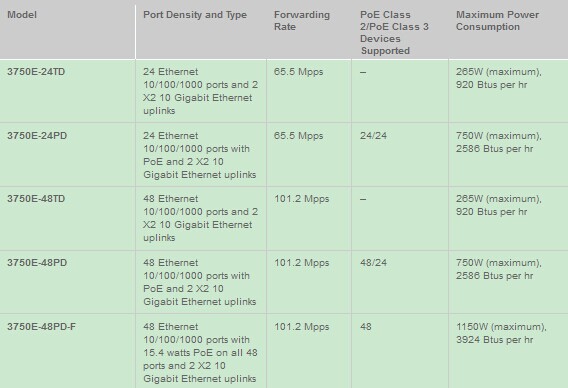

Cisco Catalyst 3750-E Series Switches Models

Model Port Density and Type Forwarding Rate PoE Class 2/PoE Class 3 Devices Supported Maximum Power Consumption
3750E-24TD

24 Ethernet 10/100/1000 ports and 2 X2 10 Gigabit Ethernet uplinks 65.5 Mpps 265W (maximum), 920 Btus per hr
3750E-24PD

24 Ethernet 10/100/1000 ports with PoE and 2 X2 10 Gigabit Ethernet uplinks 65.5 Mpps 24/24 750W (maximum), 2586 Btus per hr
3750E-48TD 48 Ethernet 10/100/1000 ports and 2 X2 10 Gigabit Ethernet uplinks 101.2 Mpps 265W (maximum), 920 Btus per hr
3750E-48PD 48 Ethernet 10/100/1000 ports with PoE and 2 X2 10 Gigabit Ethernet uplinks 101.2 Mpps 48/24 750W (maximum), 2586 Btus per hr
3750E-48PD-F 48 Ethernet 10/100/1000 ports with 15.4 watts PoE on all 48 ports and 2 X2 10 Gigabit Ethernet uplinks 101.2 Mpps 48 1150W (maximum), 3924 Btus per hr



Cisco Catalyst 3750-X Model Configurations-Comparison

Feature Set Models Total 10/100/1000 Ethernet Ports Default AC Power Supply Available PoE Power Stackpower
LAN Base WS-C3750X-24T-L

24 350W Yes- starting 15.0(2)SE software release (cables purchased separately)
WS-C3750X-48T-L 48
WS-C3750X-24P-L

24 PoE+ 715W 435W
WS-C3750X-48P-L 48 PoE+
WS-C3750X-48PF-L 48 PoE+ 1100W 800W
WS-C3750X-24U-L 24 UPOE 1100W 800W
WS-C3750X-48U-L 48 UPOE 1100W 800W
IP Base WS-C3750X-24T-S

24 350W
WS-C3750X-48T-S 48
WS-C3750X-24P-S 24 PoE+ 715W 435W
WS-C3750X-48P-S 48 PoE+
WS-C3750X-48PF-S 48 PoE+ 1100W 800W
WS-C3750X-24U-S 24 UPOE 1100W 800W
WS-C3750X-48U-S 48 UPOE 1100W 800W
WS-C3750X-12S-S 12 GE SFP 350W
WS-C3750X-24S-S 24 GE SFP 350W
IP Services WS-C3750X-24T-E 24 350W
WS-C3750X-48T-E 48
WS-C3750X-24P-E 24 PoE+ 715W 435W
WS-C3750X-48P-E 48 PoE+
WS-C3750X-48PF-E 48 PoE+ 1100W 800W
WS-C3750X-24U-E 24 UPOE 1100W 800W
WS-C3750X-48U-E 48 UPOE 1100W 800W
WS-C3750X-12S-E 12 GE SFP 350W
WS-C3750X-24S-E 24 GE SFP 350W

The main Cisco 3750-X and Cisco 3750-E models you can visit: https://www.router-switch.com/Price-cisco-switches-cisco-switch-catalyst-3750_c21
