‘How to Fix OSPF Split Area with GRE Tunnel?’ Well, here we will share a document of Fixing OSPF Split Area with GRE Tunnel from Cisco Support Community, which tell us the details and steps to configure OSPF, GRE Tunnel Interface Configuration. More tips related to Fix OSPF Split Area with GRE Tunnel…

In OSPF, a partitioned area or a split area is not expected. However, in live/some scenario, a network engineer can encounter a situation wherein a fix to split area is needed. In the current topology, Routers R2 and R3 are ABRs (Area Boundary Routers) for partitioned area 10. Each router is configured with Loopback 0 address (x.x.x.x/32, x= Router number), and the loopback is advertised through OSPF.

With basic OSPF configuration, each router can connect and ping the loopback ip address. On further analysis on Router R4, we have a route 5.5.5.5/32 as inter-area route. See the output (Inter-Area in the verification section) of the command “show ip route 5.5.5.5”, it is seen as an inter-area route (i.e LSA Type 3). The desirable/expected result would be, ip route 5.5.5.5 seen as an internal route, which Intra-Area (Type 1 or 2) route on Router R4. Since the route is originating from Area 10, hence it should be seen as an internal route to R4 and not an external route. Please see the output Intra-Area in the verification section.

The problem can be approached by two ways:

Virtual Links OR GRE Tunnel

This document focuses on the later part of the solution, Fixing OSPF split Area with GRE Tunnel.

GRE tunnel between the ABRs, R2 and R3. Tunnel Interface 23 is configured using the ip unnumbered command and configuring interface level OSPF command ip ospf 10 area 10, so that the interfaces are part of Area 10 and not Area 0.

Prerequisite

Understanding of OSPF routing protocol

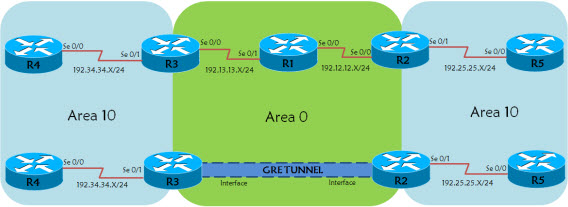

Topology Diagram

Fix OSPF Split Area with GRE Tunnel

Configuration

Basic Connectivity

Fix OSPF Split Area with GRE Tunnel-2

Basic OSPF Configuration

R1 R2 R3 R4 R5
router ospf 10

router-id 1.1.1.1

network 1.1.1.1 0.0.0.0 area 0

network 192.12.12.1 0.0.0.0 area 0

network 192.13.13.1 0.0.0.0 area 0

router ospf 10

router-id 2.2.2.2

network 2.2.2.2 0.0.0.0 area 0

network 192.12.12.2 0.0.0.0 area 0

network 192.25.25.2 0.0.0.0 area 10

router ospf 10

router-id 3.3.3.3

network 3.3.3.3 0.0.0.0 area 0

network 192.13.13.3 0.0.0.0 area 0

network 192.34.34.3 0.0.0.0 area 10

router ospf 10

router-id 4.4.4.4

network 4.4.4.4 0.0.0.0 area 10

network 192.34.34.4 0.0.0.0 area 10

router ospf 10

router-id 5.5.5.5

network 5.5.5.5 0.0.0.0 area 10

network 192.25.25.5 0.0.0.0 area 10

GRE Tunnel Interface Configuration

Fix OSPF Split Area with GRE Tunnel-3

Verification Commands

Inter-Area

Before Tunnel Interface, show ip route 5.5.5.5 as seen on Router R4

Fix OSPF Split Area with GRE Tunnel-4

Note: As seen from the output, route 5.5.5.5 is received as an Inter-Area (LSA Type 3) route on R4. R4 assumes that the route originated from a different area.

Intra-Area

After the Tunnel Interface, show ip route 5.5.5.5 as seen on Router R4

Fix OSPF Split Area with GRE Tunnel-5

Note: Here R4, assumes that the route 5.5.5.5 is internal or Intra-Area (LSA type 1 or 2) route.

Reference from https://supportforums.cisco.com/docs/DOC-22544
