The best option for LAN switching, data center networking, and AV over IP switching is Cisco Catalyst Switches, which are ranked first in each category. Switches made by Cisco have an 8.6 out of 10 rating from PeerSpot users. In order to fulfill the demands of hybrid work, Cisco switches are scalable and economical.

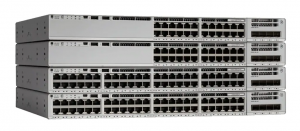

Among the switches of Cisco, Cisco Catalyst 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to broader deployments. In addition, catalyst 9200 series switches offer simplicity without compromise – it is secure, always on, and IT-simplified with their family pedigree. Switches from the Catalyst 9200 Series have security measures that safeguard the integrity of the switch’s hardware, software, and any data that passes through it. It offers resilience that keeps your company operating smoothly. Along with UADP ASIC technology’s programmability and the open APIs of Cisco IOS XE, Catalyst 9200 Series switches provide you with what you need right now while protecting your investment in future advancements.
Catalyst 9200 Series switches are the industry’s unmatched solution with differentiated resiliency and progressive architecture for cost-effective branch-office access thanks to their full PoE+ capability, power and fan redundancy, stacking bandwidth up to 160 Gbps, modular uplinks, Layer 3 feature support, and cold patching. Additionally, Catalyst 9200 Series switches offer Meraki cloud monitoring or Cisco DNA Center operational choice.
To sum up, there are three reasons why you can count on the Cisco Catalyst 9200 Series Switches.
Performance
Cisco Catalyst 9200 Series supports up to 160 Gbps, twice the density of the other switches at nearly the same price. It also has 4x 1G SFP and 4x 10G SFP+.
Security
It supports Full Flexible NetFlow, Cisco TrustSec and SGT for wired and wireless, orchestrating role-based access to corporate resources, trustworthy solutions, and MACsec link encryption.
Simplicity and automation
It’s equipped with Cisco IOS XE, Model-driven programmability, Streaming telemetry, SD-Access programmability, and Meraki cloud monitoring, along with the benefits of a Single common network OS across switching, routing, wireless, and IoT, Standards-based programmable interfaces, Rich contextual insights, Automation and assurance, Visibility on Meraki Dashboard.
Quick Check of Cisco Catalyst 9200 Switches
| Product ID | Total Ports | Gigabit Ethernet / FE ports | Rate | POE+ | PoE+power budget | Power Supply | Uplink Interfaces | Rate | Forwarding bandwidth | Forwarding rate |
| C9200-24T | 24 | 24 | 10M/100M/1000M | N/A | N/A | PWR-C6-125WAC | Modular uplink options | N/A | 128Gbps | 95.23Mpps |
| C9200-24P | 24 | 24 | 10M/100M/1000M | 24 | 370W | PWR-C6-600WAC | Modular uplink options | N/A | 128Gbps | 95.23Mpps |
| C9200-24PB | 24 | 24 | 10M/100M/1000M | 24 | 370W | PWR-C6-600WAC | Modular uplink options | N/A | 128Gbps | 95.23Mpps |
| C9200-24PXG | 24 | 24 | 100M/1G/2.5G/5G/10G | 24 | 370W | PWR-C6-600WAC | Modular uplink options | N/A | 352Gbps | 261.90Mpps |
| C9200-48T | 48 | 48 | 10M/100M/1000M | N/A | N/A | PWR-C6-125WAC | Modular uplink options | N/A | 176Gbps | 130.95Mpps |
| C9200-48P | 48 | 48 | 10M/100M/1000M | 48 | 740W | PWR-C6-1KWAC | Modular uplink options | N/A | 176Gbps | 130.95Mpps |
| C9200-48PL | 48 | 48 | 10M/100M/1000M | 48 | 370W | PWR-C6-600WAC | Modular uplink options | N/A | 176Gbps | 130.95Mpps |
| C9200-48PB | 48 | 48 | 10M/100M/1000M | 48 | 740W | PWR-C6-1KWAC | Modular uplink options | N/A | 176Gbps | 130.95Mpps |
| C9200-48PXG | 48 | 48 | 100M/1G/2.5G/5G/10G | 48 | 740W | PWR-C6-1KWAC | Modular uplink options | N/A | 400Gbps | 297.61Mpps |
| C9200L-24T-4G | 28 | 24 | 10M/100M/1000M | N/A | N/A | PWR-C5-125WAC | 4 | 1G | 56Gbps | 41.66Mpps |
| C9200L-24P-4G | 28 | 24 | 10M/100M/1000M | 24 | 370W | PWR-C5-600WAC | 4 | 1G | 56Gbps | 41.66Mpps |
| C9200L-48T-4G | 52 | 48 | 10M/100M/1000M | N/A | N/A | PWR-C6-125WAC | 4 | 1G | 104Gbps | 77.38Mpps |
| C9200L-48P-4G | 52 | 48 | 10M/100M/1000M | 48 | 740W | PWR-C5-1KWAC | 4 | 1G | 104Gbps | 77.38Mpps |
| C9200L-48PL-4G | 52 | 48 | 10M/100M/1000M | 48 | 370W | PWR-C5-600WAC | 4 | 1G | 104Gbps | 77.38Mpps |
| C9200L-24T-4X | 28 | 24 | 10M/100M/1000M | N/A | N/A | PWR-C5-125WAC | 4 | 10G | 128Gbps | 95.23Mpps |
| C9200L-24P-4X | 28 | 24 | 10M/100M/1000M | 24 | 370W | PWR-C5-600WAC | 4 | 10G | 128Gbps | 95.23Mpps |
| C9200L-48T-4X | 52 | 48 | 10M/100M/1000M | N/A | N/A | PWR-C5-125WAC | 4 | 10G | 176Gbps | 130.95Mpps |
| C9200L-48P-4X | 52 | 48 | 10M/100M/1000M | 48 | 740W | PWR-C5-1KWAC | 4 | 10G | 176Gbps | 130.95Mpps |
| C9200L-48PL-4X | 52 | 48 | 10M/100M/1000M | 48 | 370W | PWR-C5-600WAC | 4 | 10G | 176Gbps | 130.95Mpps |
| C9200L-24PXG-4X | 28 | 24 | 100M/1G/2.5G/5G/10G | 24 | 370W | PWR-C5-600WAC | 4 | 10G | 272Gbps | 214.28Mpps |
| C9200L-48PXG-4X | 52 | 48 | 100M/1G/2.5G/5G/10G | 48 | 740W | PWR-C5-1KWAC | 4 | 10G | 392Gbps | 291.66Mpps |
| C9200L-24PXG-2Y | 26 | 24 | 100M/1G/2.5G/5G/10G | 24 | 370W | PWR-C5-600WAC | 2 | 25G | 292Gbps | 229.16Mpps |
| C9200L-48PXG-2Y | 50 | 48 | 100M/1G/2.5G/5G/10G | 48 | 740W | PWR-C5-1KWAC | 2 | 25G | 340Gbps | 252.97Mpps |
| C9200CX-12T-2X2G | 16 | 12 | 10M/100M/1000M | N/A | N/A | 80W External Power Adapter | 4 | 1/10G | 120Gbps | 95.23Mpps |
| C9200CX-12P-2X2G | 16 | 12 | 10M/100M/1000M | 12 | 240W | 310W internal | 4 | 1/10G | 120Gbps | 95.23Mpps |
| C9200CX-8P-2X2G | 12 | 8 | 10M/100M/1000M | 8 | 240W | 310W internal | 4 | 1/10G | 60Gbps | 95.23Mpps |
Are you interested in these products? Welcome to learn details and check the price on Router-switch.com.
